| AS K 18 | scale M 1: 3,85 | |||||||||||||
| Model with ready parts | Ref. N°. | rk424 | 589,00 € | |||||||||||
| Price with VAT | ||||||||||||||

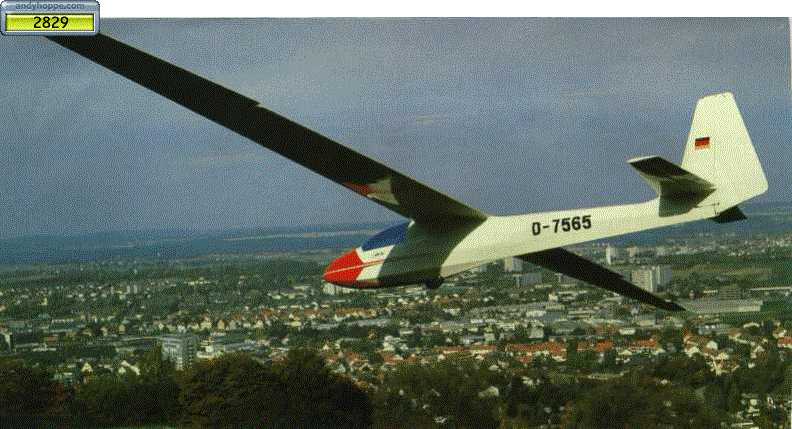

| This classic sailplane has warmed the hearts of countless model pilots. The AS K 18 differs pleasantly from all the other sail-flight models with round and slender fuselages. | ||||||||||||||
| Outstanding performance in thermal flying and also very good for slope-soaring. The flight behavior is completely uncritical. Even inexperienced pilots can climb higher in the smallest thermal fields. | ||||||||||||||
| Rolls, loops and turns flies the AS K 18 very clean, and it is fantastic, to see this model in action. | ||||||||||||||
| With the appropriate painting, the AS K 18 is not to be distinguished from the original-airplane neither on the ground nor in the air. | ||||||||||||||
| Content of delivery and description of the finished components: | ||||||||||||||
| Fiberglass fuselage, white, repeatedly reinforced, bowden cable for rudder and elevator built in, the lower rotary bearing for the rudder is fitted. The positions for wing-bracket, bores for stabilizer, tow-hook and wheelaxle are clearly marked. | ||||||||||||||
| Canopy in clear colorless or colored smoke | ||||||||||||||
| Wings balsasheeted, reinforced with sufficient deposits of glass , fitted double-TECK-37cm spoilers, ailerons ready cutten out. Reinforcements to the servo shafts incorporated, steels for wing-joiner ready in the wings, twisted servo cables for all servos in the wings inserted. | ||||||||||||||
| The stabilizer, ( left and right unit) comes ready sanded. The flaps are not yet separated from the fin, this happens after assembling to the fuselage. | ||||||||||||||
| Rudder styrofoam/balsa, ready sanded, storage tubes must be glued in by the customer. | ||||||||||||||
| Set of small-parts: Wing steel insertion device, brass tubes, stabilizer mating, increased elevatot pendulum lever, 3 horns for ailerons and rudder, canopy-lock and detailed, illustrated instructions in german language. | ||||||||||||||
| Technical data | Spare parts | Ref. N°. | Price with VAT | |||||||||||
| Wingspan | 4150 mm | Fiberglass fuselage, white, with built-in bowden cable for elevator and rudder | rk4241 | 179,00 € | ||||||||||
| Length over all | 1810 mm | |||||||||||||
| Height over all | 440 mm | Canopy glass, transparent blue-colored | rk4242b | 19,90 € | ||||||||||
| Wing profile on the fuselage | E 193 | Canopy glass, transparent colorless | rk4242f | 19,90 € | ||||||||||
| Wing width at the fuselage | 337 mm | Canopy glass, transparent smoke-colored | rk4242r | 19,90 € | ||||||||||
| Fuselage width at wing connection | 150 mm | Pair finished wings with ailerons and airbrakes, ready to cover | rk4243 | 318,00 € | ||||||||||
| Wing area | 106 dm2 | |||||||||||||
| Wing profiles | E193/ E 193/ E 197 | Stabilizer styrofoam/balsa | rk4244 | 63,00 € | ||||||||||
| Tailplane- span | 725 mm | Styrofoam/balsa rudder | rk4245 | 23,60 € | ||||||||||
| Tailplane- area | 10,5 dm2 | Wing steel insertion device for fuselage | rk4246g | 26,00 € | ||||||||||
| Tailplane- profile | NACA 0009 | |||||||||||||
| Weight RTF approx. | 4700 bis 5800 gr. | |||||||||||||
| G - load max. (Resilience) | 10 G | |||||||||||||
| Optional accessories : ( to order additional ) | Ref. N°. | Price with VAT | ||||||||||||
| GRP canpy frame ( closed) | rk42412 | nicht mehr lieferbar | ||||||||||||
| Offener Kabinenrahmen, handgefertigt aus 8mm-Sperrholz. Geeignet, wenn der Rumpf mit einer Scale-Cockpitausrüstung versehen werden soll. | rk424.12h | 28,00 € | ||||||||||||
| Set of instruments 1:4 | rk1014 | 11,50 € | ||||||||||||
| 1 Slide window 1 : 4, compl. with Guide rails and 6 screws M1 | rk1014 | 11,50 € | ||||||||||||
| Scale seatbelt 1:4 with illustration | rk1010 | 9,95 € | ||||||||||||
| Set of joystick, spoiler actuating lever and microphone, scale 1:4 | rk1011 | 9,95 € | ||||||||||||
| GRP wheel cover forwheels up to 100 mm Ø | rk1021 | 7,00 € | ||||||||||||
| Standard-wheel 900 mm Ø, with Nylon-rim | br90 | 4,90 € | ||||||||||||
| High-load-quality-wheel 90 mm Ø, with Nylon-rim | mx733093 | 7,10 € | ||||||||||||
| Tow release for installation in fuselages front end | kd1186 | 13,95 € | ||||||||||||
| Tow hook for winch launch (2 pc.) | gr627 | 3,00 € | ||||||||||||
| Aluminium- fuselage shoring (for fuselage between leading edges) | rk1060 | 14,50 € | ||||||||||||
| Dekorsatz, bestehend aus 2 Schriftzügen AS K 18 und „ 2 x Zahlenfolge D- 6726 für Leitwerksträger | rk42489 | 6,90 € | ||||||||||||
| Paar D-Flaggen, klein, 60x35 mm, zum Aufkleben auf die Seitenflosse | rk1220 | 2,30 € | ||||||||||||
| 1 pair of wings protecting bags from 3 - layer bubble wrap | rk42491 | 32,00 € | ||||||||||||
| Protection bag for stabilizer, made from 3 - layer bubble wrap | rk42492 | 11,90 € | ||||||||||||
| 3- view of the model, all Profiles 1:1 drawn (only necessary, if you want build yourself wings, stabilizer and rudder) | rk42496 | 10,50 € | ||||||||||||
| Services to the model | Ref. N°. | Price with VAT | ||||||||||||
| Installation and adjustment of the wing bracket in the fuselage | rk424s1 | 64,50 | ||||||||||||
| Absolute gap-free fine-tuning of the wing to the fuselage contour | rk424s11 | 33,40 | ||||||||||||
| Mounting of the aluminium fuselage shoring 1060 in the fuselage between leading edges | rk424s13 | 14,95 | ||||||||||||
| Mounting canopy frame and canopy-lock on the fuselage | rk424s14 | 39,00 | ||||||||||||
| Installation of stabilizer, rudder, the associated linkage and the side fin conclusion. | rk424s151 | 177,00 | ||||||||||||
| Fitting the front wheel and wheel cover (labor only) | rk424s7 | 42,00 € | ||||||||||||
| Customize and gluing the canopy on the canopy frame | rk424s832 | 98,20 € | ||||||||||||
| Further service work, which can lead up to the flight-finished model, on detailed request! | ||||||||||||||
| roke - modelle, Roland Kern, Rosenstrasse 2, D - 72827 Wannweil, Tel.: 0049 7121 - 57 336, FAX: 0049 7121 - 54 439 | E-mail to ROKEMODELL | |||||||||||||
| More informations about this and other ROKE- models you can see in our Video „ROKE - Modelle“. We present the models in as-delivered condition and in the flight. The video has a running time of over 2 hours and is accompanied from wonderful music in HiFi hiFi-Stereo. | ||||||||||||||
| The video is on stock: | Order- No. | rk10 | Price | |||||||||||
